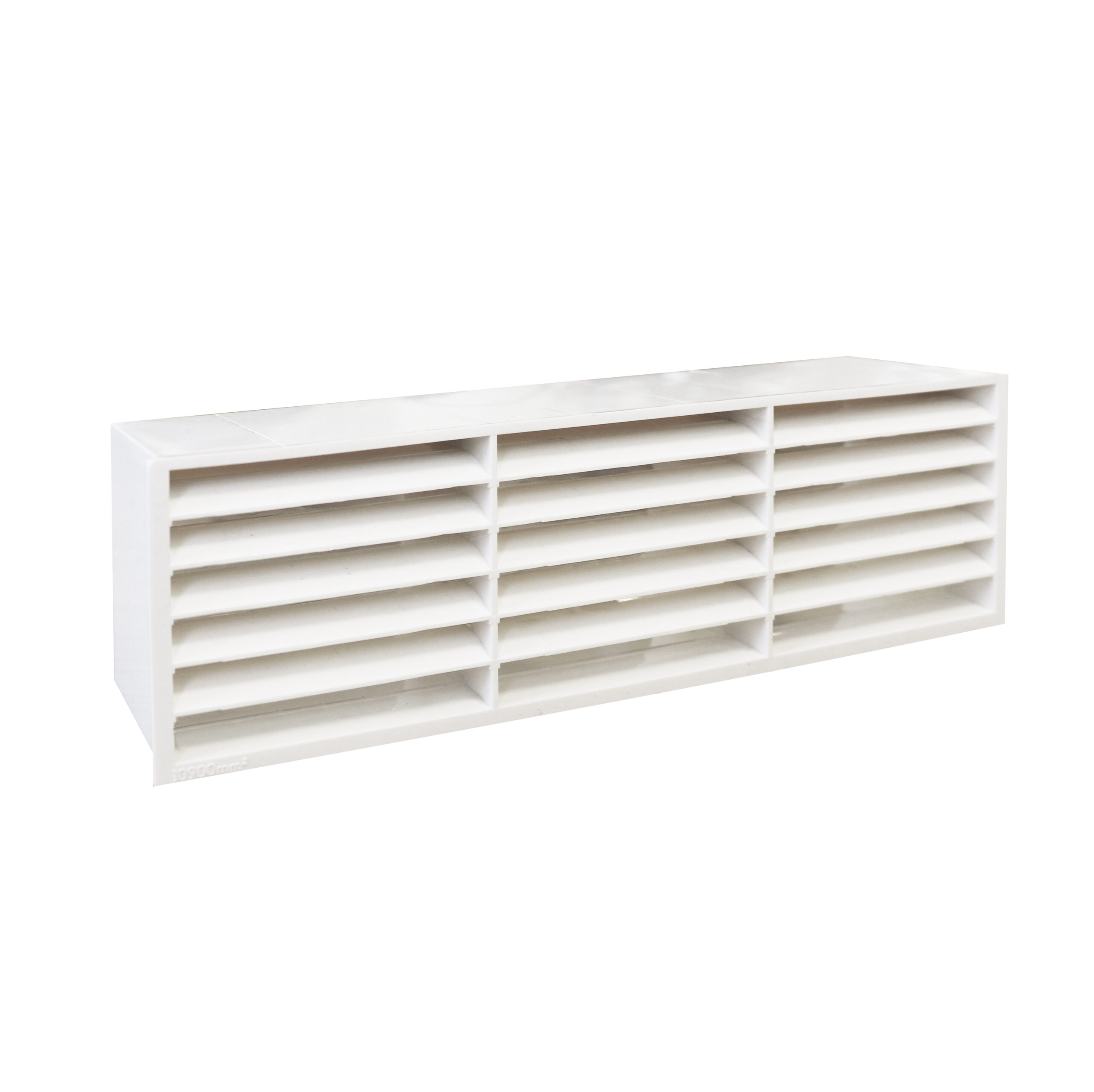

55012W 204 x 60mm Slimline Airbrick Low Resistance White

55012W

Provides over 90% free area of duct
Easier to install than a double air brick
Guide vanes for improved duct connection
Optional first fix duct section
White RAL 9003

Product Type	Air Bricks
Warranty	3yr

Description	Available in six colours, this low resistance air brick has been designed to comply with the latest Building Regulations Approved Document F, which requires a ventilation outlet to achieve a minimum of 90% of the cross sectional area of the ductwork. Installing a single air brick is much simpler than a double air brick and offers more versatility for locations. Suitable for 100mm and 125mm diameter and rectangular 204 x 60 ducting. Attaching duct to the air brick is simplified by the use of guide vanes which help locate the duct onto the spigot. A 500mm section of 204 x 60 duct is available for first fix which ensures that connections are accessible after completion of building works. Six colour options ensure that the low resistance air brick will be a match for almost any application.

Description

Available in six colours, this low resistance air brick has been designed to comply with the latest Building Regulations Approved Document F, which requires a ventilation outlet to achieve a minimum of 90% of the cross sectional area of the ductwork.

Installing a single air brick is much simpler than a double air brick and offers more versatility for locations.

Suitable for 100mm and 125mm diameter and rectangular 204 x 60 ducting.

Attaching duct to the air brick is simplified by the use of guide vanes which help locate the duct onto the spigot.

A 500mm section of 204 x 60 duct is available for first fix which ensures that connections are accessible after completion of building works.

Six colour options ensure that the low resistance air brick will be a match for almost any application.

Rectangular Duct mm	204 x 60
Depth (mm)	58
Colour	White
