The 125mm (5″) series complies with the Building Regulations on Ventilation (F1).
Speed 1 (l/s)
36.1
Control Type
Humidistat, Run-on Timer, Pullcord
Installation Type
Wall, Panel
Running Mode
Intermittent
IP Rating
IPX4
Max Humidity (%)
95
Max Timer (Minutes)
20
Sound dB(A) @ 3m
41
Power 1 (W)
15.5
Width (mm)
182
Height (mm)
182
Depth (mm)
78
Spigot Diameter (mm)
120
Cat. No
XF120HP

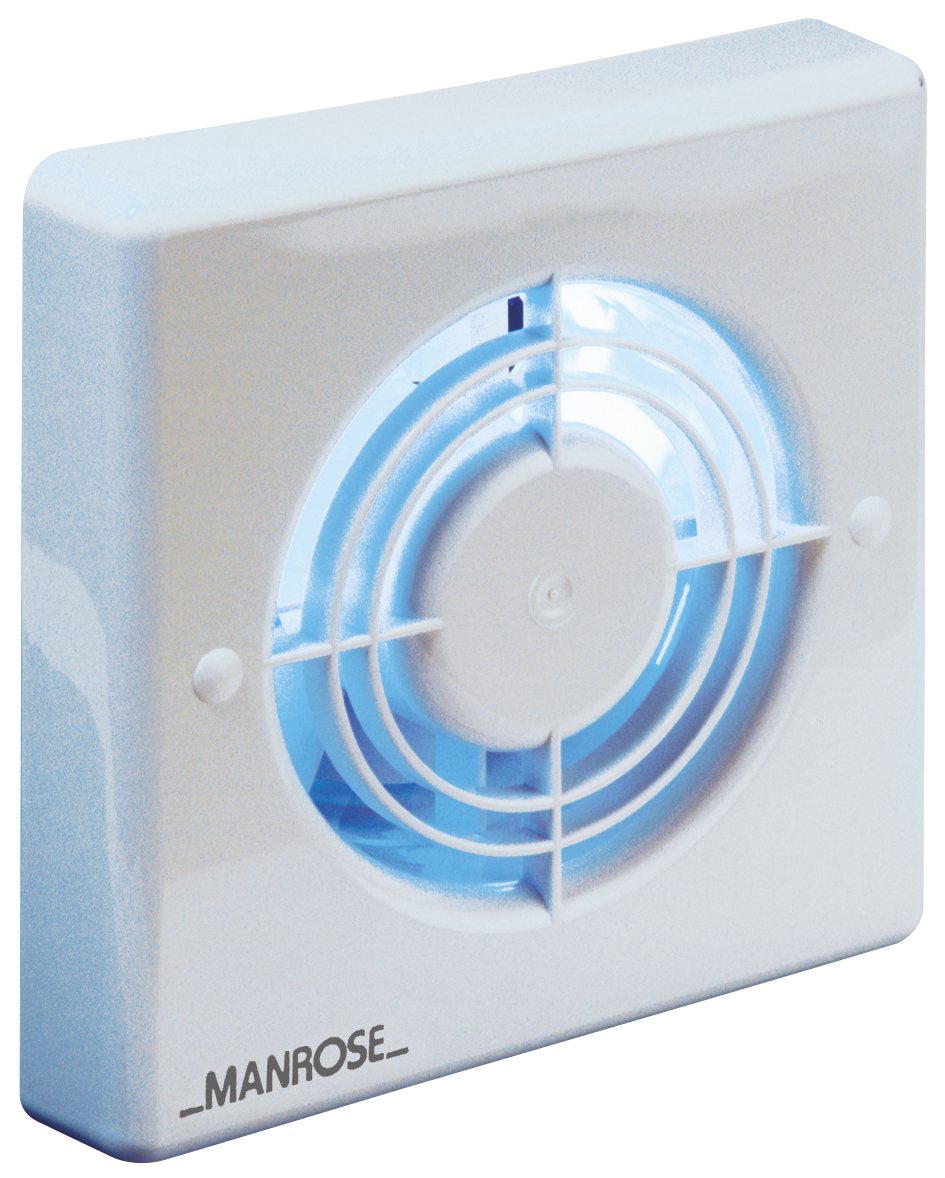

Designed for wall, ceiling or window mounting, the efficient range of axial flow extractor fans are available in eleven options.
The XF/WF120 range of 125mm (5″) bathroom/toilet fans are quiet in operation, easy to install and possess the latest design technology.
Designed for larger bathrooms, toilets, cloakrooms and medium sized rooms, the 125mm (5″) series of fans are 56% more powerful than their 100mm (4″) counterparts, yet only 10% larger in surface area.
The extract rate is 130m³/hr, 36 litres per second. Power is provided by a single phase induction motor with pre-oiled bearings fitted for a long, maintenance free life.
The units are all manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning.
