This product range is now obsolete and no longer available from Manrose. The information here is provided for reference only.

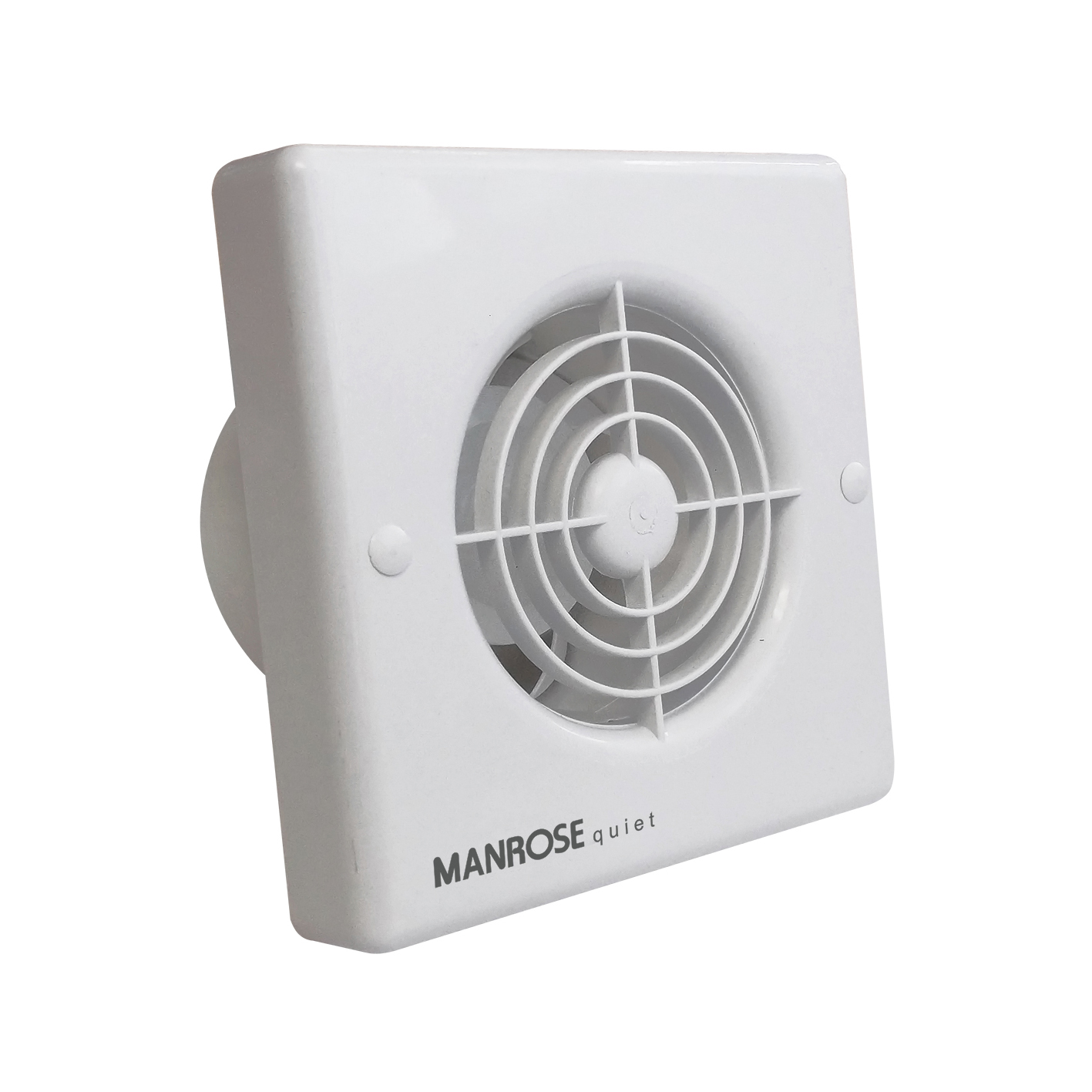

QF100TX5 Quiet Fan Timer IPX5 100mm
- IPX5 rated
- High quality, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
- Manufactured using high gloss ABS thermoplastics for strength and durability
- Decibel Level of ONLY 27dB(A) at 3m. Over 60% reduction in comparison to standard 4″ (100mm) domestic fans.
- An impressive extraction rate of 75m³/hr, 21 litres per second
|Product Type||Axial Fans|
|Room Type||Bathroom, Ensuite|
- Low energy motor with a maximum consumption of 7 Watts
- Low SFP of just 0.33W/l/s
- Complete with integral backdraught shutters
- Complies with both Part F & L
The unit also comes complete with a performance enhancing turning vane system located in the spigot to improve performance by maintaining a high output.
|Speed 1 (l/s)||20.8|
|Control Type||Run-on Timer|
|Installation Type||Wall, Panel, Ceiling|
|Shutter Type||Spring Return|
|Max Timer (Minutes)||20|
|Sound dB(A) @ 3m||27|
|Power 1 (W)||7|
|Spigot Diameter (mm)||100|
